Countersunk Vintage Stratocaster Pickup Mounting Screws (1960–1971)

These specifications cover the specific "countersunk" mounting hardware used on Fender Stratocasters during the transition from the Pre-CBS era into the early CBS years.

1. Physical Specifications

• Thread Type: #6-32 UNC (Standard American thread for single-coil pickups).

• Length:  approx 18mm

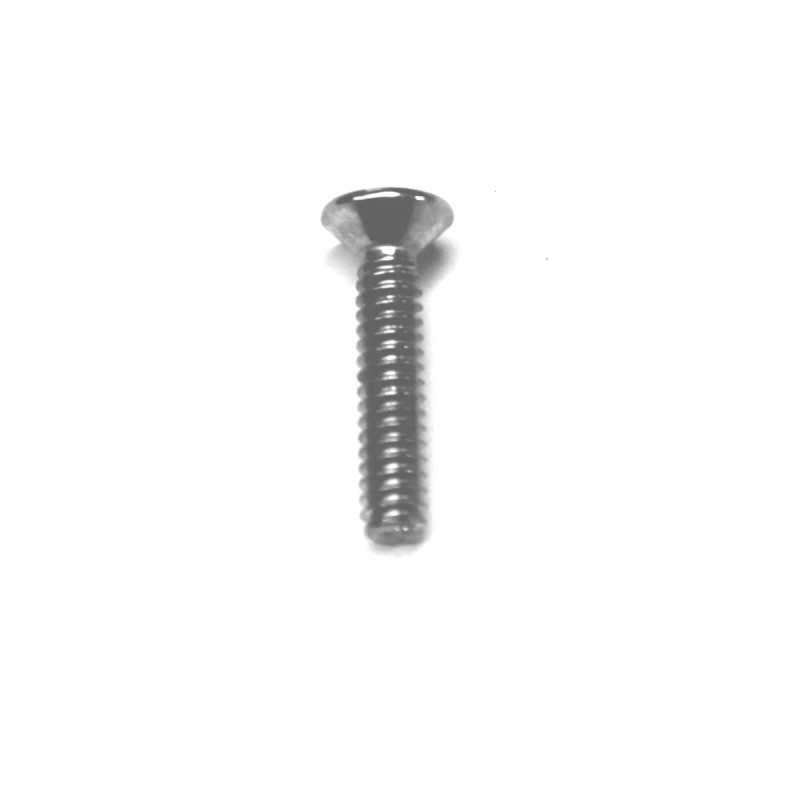

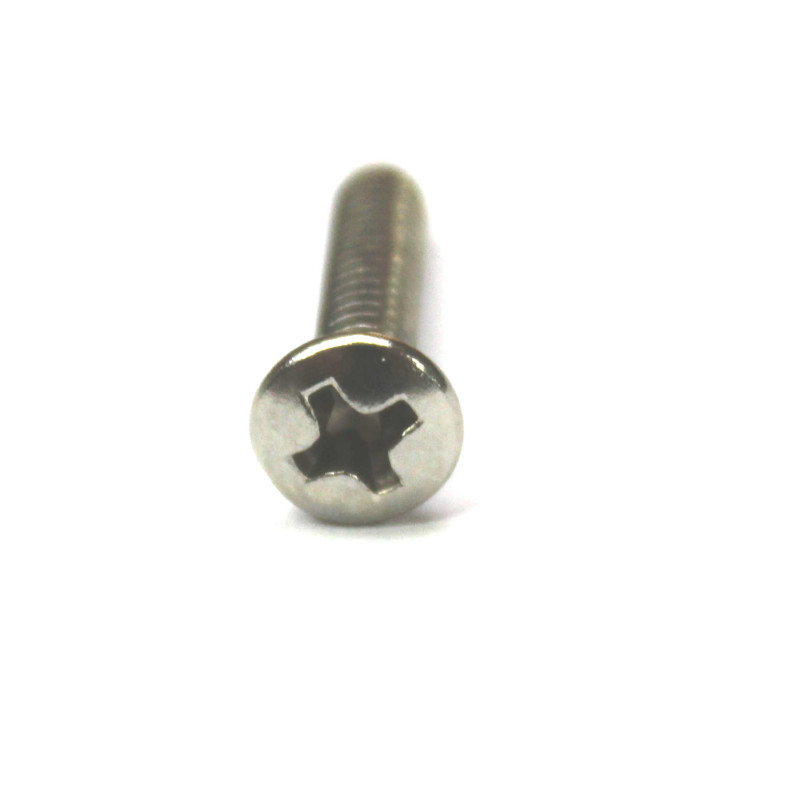

• Head Type: Phillips Oval Head (Countersunk).

• Material: Steel.

• Finish: Chrome (standard for this era; though Nickel was used earlier, Chrome became the mainstay by the mid-60s).

• Quantity: 10 Pieces (Enough for 3 pickups + 4 spares, or typical for multi-pack restoration kits).

2. Historical Context (1960–1971)

During this period, Fender utilized a specific aesthetic for their pickguards that required these screws, but not all guitars we fitted with countersunk. Most 1 ply guards still used the round head screws.

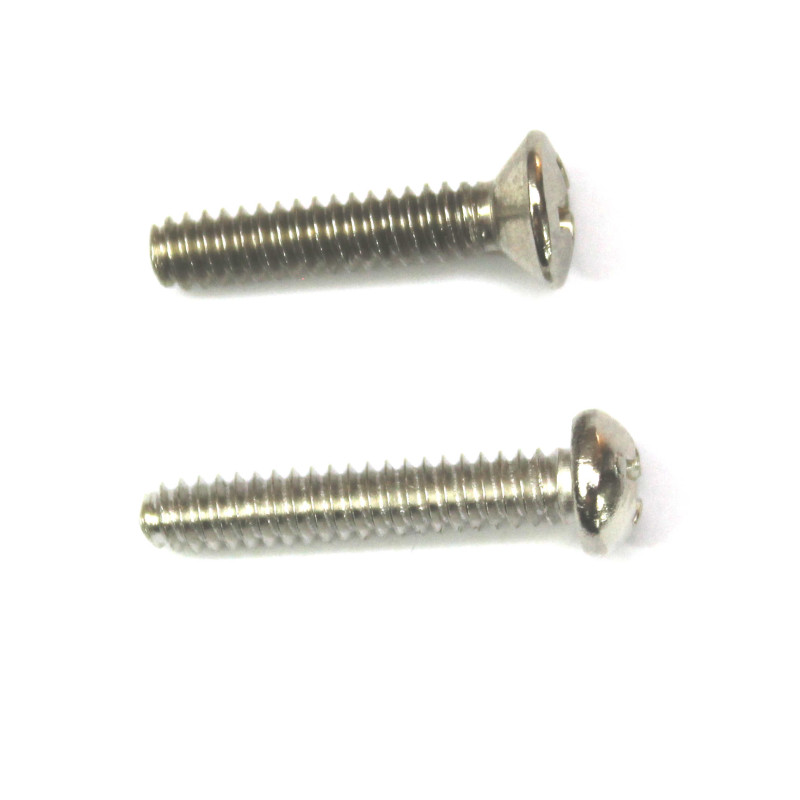

• The Countersunk Requirement: Vintage-style Stratocaster pickguards (specifically the 3-ply Nitrocellulose or "Mint Green" guards introduced in late 1959/early 1960) featured countersunk holes for the pickup mounting screws. This allowed the screw head to sit flush or slightly recessed into the pickguard rather than sitting on top (pan-head style).

• 1962 Transition: By 1962, the "slab board" era was ending, but the hardware remained consistent. These screws are essential for "Period Correct" restorations of 1962–1965 Pre-CBS models and 1966–1971 CBS-era models.

• Switch Compatibility: These screws often share the same thread and head profile as the 3-way (and later 5-way) CRL selector switch mounting screws, making them versatile for pickguard assembly.

3. Installation Compatibility

• Pickups: Fits all vintage-spec Fender single-coil pickups (Stratocaster, Telecaster Neck, Duo-Sonic, Mustang).

• Pickguards: Must be used with countersunk (beveled) pickguard holes. If used on a modern non-beveled guard, the head will protrude awkwardly.

• Spacers: Historically paired with surgical rubber tubing (latex) rather than conical springs, though both are functional for height adjustment.
